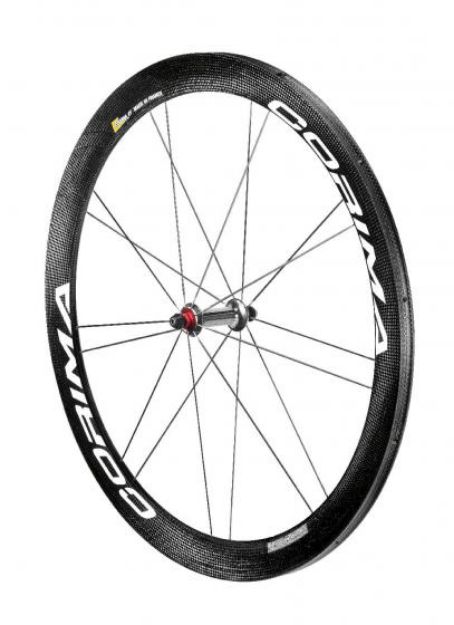

CORIMA 47 MM "S"
The CORIMA 47 MM "S" is the wheel for enthusiasts looking for speed and efficiency above all else.
Assembling the CORIMA 47 mm rim with the "S" hub produces an ultra-high performance combination. This concept improves the factors that affect a wheel’s performance: Weight, stiffness, rotation inertia, aerodynamics, fluidity, power transmission and durability. The front wheel is built with 18 spokes under our R2 system and the rear wheel with 20 (CX) spokes under the 12/8 system developed by CORIMA.
Front wheel
Products Ref T165000 / 28“ 700C
FR / RR FR
Type of use Road
Carbon Weave Carbon 12K
Clincher / Tubular Tubular
Width 22.6 mm
Profile 47 mm
Weight 545 g (28") - 500 g (26")
Spoke count 18
Type of spokes CX-Ray
Spoke length 273 mm (28" 700C)
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T70110
Quick release skewer Supplied
Spoke wrench Supplied
Valve extender Supplied
Rim tape No
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts No
Integrated magnet No
Center Lock Disc brake system No
Rear wheel
Additional Information
Products Ref T165002 / 28" 700C - Campagnolo 9/10/11Sp.
T165003 / 28" 700C - Shimano 9/10/11Sp. Sram
T165032 / 26" 650C - Campagnolo 9/10/11Sp.
T165033 / 26" 650C - Shimano 9/10/11Sp. Sram
FR / RR RR
Type of use Road
Carbon Weave Carbon 12K
Clincher / Tubular Tubular
Width 22.6 mm
Profile 47 mm
Weight 785 g (28") - 740 g (26")
Spoke count 20
Type of spokes CX
Spoke length 271 / 284 mm (28" 700C) – 246 / 258 mm (26" 650C)
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T70122 Campagnolo 9/10/11Sp. - T70120 Shimano 9/10/11Sp. Sram
Quick release skewer Supplied
Spoke wrench Supplied
Valve extender Supplied
Rim tape No
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts No
Integrated magnet No
Center Lock Disc brake system No
