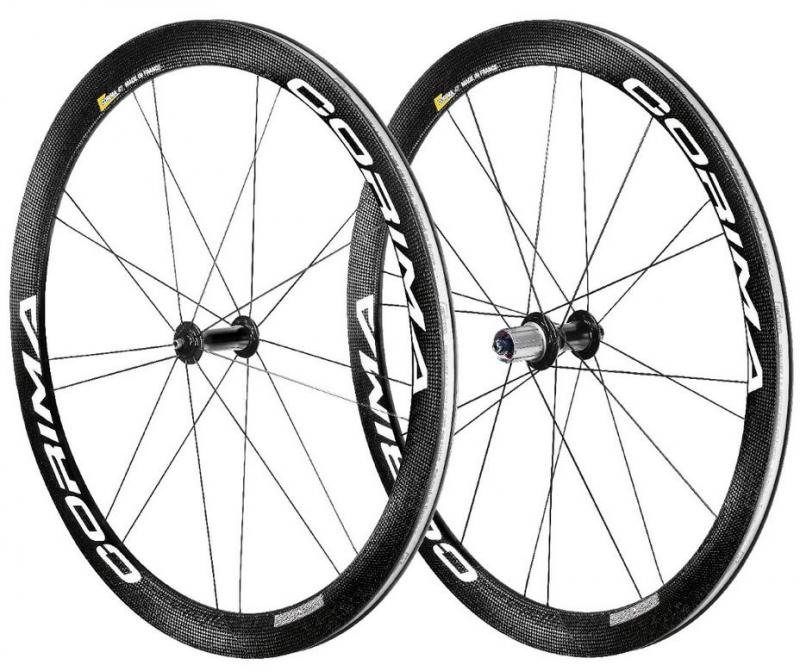

CORIMA S1 - 47mm - wheelset
With the help of computer simulations CORIMA wheels achieve the lowest possible air resistance. The results are highly technical and efficient wheels. Validated in the wind tunnel, the hours of experience and the use of state-of-the-art technologies pay off.
The clincher tyre variant of the S1 Carbon wheelset is made of 3K Carbon and is characterized by the following specs:
ETRTO: 16c x 622
outer rim width: 22,6mm
rim height: 47mm
weight: 1620g
spoke count: 18 x CX Ray on front, 20 x CX Straight on rear
CORIMA S1 hub
Made in France
handmade
quick release skewer, spoke wrench, valve extender, rim tape, pair of brake pads and protection wheelbag included in delivery
Made in France
CORIMA’s know-how is unique and the company is well known for its constant innovation. CORIMA have been manufacturing high performance carbon wheels for more than 29 years. Due to their experience in working with composite materials, CORIMA controls all of the steps in the manufacturing process to make your product “unique“.
Handmade
Special care is taken with every wheel build. Each of the spoked wheels are hand-built. During the wheel building process the spoke tension is constantly checked with a tension meter to ensure the highest quality build and to keep the wheel running “straight” and “true” over time.
"S1" and "S" aluminium-hubs
Made in France from the best alloys by precision engineering specialists using the most up-to-date machining equipment. All hubs benefit from the latest innovations with, for example, a 30-tooth free-wheel ratchet ring and a Ø 17mm titanium/aluminium spindle. The CORIMA hubs are also fitted with top of the range cartridge bearings. The cassette bodies of the hubs are even easier to use, the three pawls are held in place by a spring and the same sprocket wrench can be used for removing the bearings.
CORIMA
Manufacturer item code: T220600
T220602 (Shimano / SRAM 9/10/11 speed)
T220603 (Campagnolo 9/10/11 speed)
Material: rim: carbon 3K
hub: aluminium
Weight: approx. 1620 gram (manufacturer's information)
Rim height: 47mm
external/internal rim width: external: 22,6mm
E.T.R.T.O.: 16c-622
Spokes: Sapim CX 2.4 - front
Sapim CX Straight - rear
Spokes number: 18 front
20 rear
Hub axle system: Front: 9x100mm
Rear: 10x130mm
Fitting type of tire: Clincher
Maximum tire pressure: Max. authorized air pressure:
23 mm clincher tire = 7.8 Bar
25 mm clincher tire = 7.3 Bar
28 mm clincher tire = 6.6 Bar
Purpose: Road, Training
hub: S1 aluminium hub
Fitting for shifting: Shimano/SRAM 9-/10-/11-speed (HG-E)
Campagnolo 9/-10-/11-speed (ED)
Color: black rim with white corima writings, black spokes and hub
Included in delivery: front wheel, rear wheel, quick release skewer, spoke wrench, valve extender, rim tape, pair of brake pads, protection wheelbag
