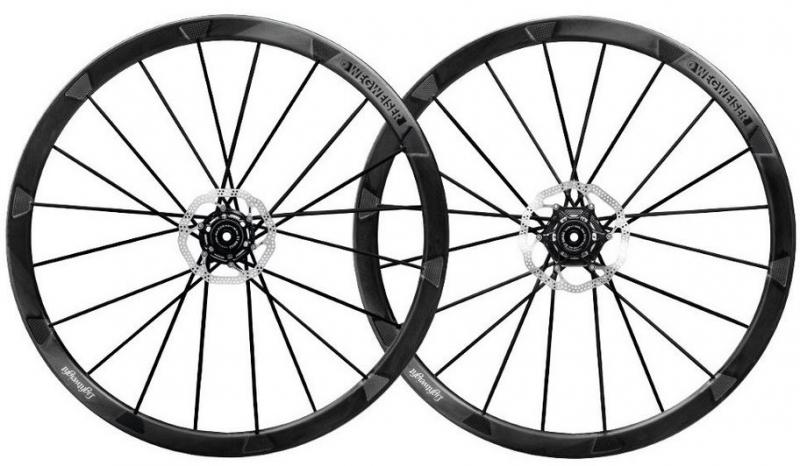

Wegweiser - Trip to future
A high end wheelset from automated production: The German high end manufacturer Lightweight reaches a new evolution level of carbon fibre technology in racing bicycles.
High reproducibility, lower tolerances and integrated quality control: Lightweight started an ambitious project in 2013 with the goal of making wheelsets in automated production, thus making carbonfibre technology competitive in price. Now, the carbon specialist from Friedrichshafen has achieved that goal.
With the new Wegweiser carbon wheelset, the Lightweight engineers are revolutionising carbon wheel construction in Germany. The secret is in the production: Technologies and know-how from aerospace and satellite construction are the foundation for producing an excellent carbon wheel with automated manufacturing processes that meets the brands claim to perfection.
The complex production is based on a simple idea: Craftsmanship is combined with mechanical processing and makes production extremely precise and significantly faster at the same time. The 20 carbon spokes on the rear and front wheel are manually connected with the rim ring from the outside. For the first time, the ring is produced in an independently developed fully automated machine.
The result is a completely new Lightweight wheel of utmost quality that can be offered for an attractive price "Made in Germany". The modern rim width of 24 mm combined with a flat rim height of 36 mm and new spoke connections guarantee the stiffness values and riding characteristics typical for Lightweight at a total weight of less than 1450 grams in the clincher version. In summary, this makes the Wegweiser a superior, disc system wheel with very little maintenance need.
A magnet (for bike computer) and an individually numbered read-only microchip (important for the registration and Wheel Protection) are laminated into each wheel.
Note: All Lightweight products are the result of manual labor. Slight deviations in color or surface finish are characteristic features of this high quality manufacturing procedure.
Year: 2018
Manufacturer item code: B5001
Material: carbon
Weight: approx. 1495 gram (wheelset)
approx. 710 gram (front wheel)
approx. 785 gram (rear wheel)
(manufacturer's specs)
Rim height: 36 mm
external/internal rim width: outer: 24 mm
Spokes: carbon bladed
Spokes number: 20
Hub axle system: FW: 12 x 100 mm | thru axle
RW: 12 x 142 mm | thru axle
Fitting type of tire: clincher
Fitting tire dimension: 25 to 32-622
Purpose: competition - road
Fitting for shifting: Shimano / SRAM 11-speed (9-/10-speed with pacer)
Campagnolo 9-/10-/11-speed
Max. permissible total weight
(rider + bike): approx. 120 kg
Color: rims, hubs: black
spokes: black
Disc brake standard: Centerlock (for 140 / 160 mm disc diameter)
Included in delivery: without disc rotors, without thru axles
Lightweight Disc Adapter Set 1: End Caps 12x100mm | 12x142mm Thru Axle
End caps to convert the Lightweight Meilenstein C Disc wheels to the 12x100mm and 12x142mm Thru Axle system.
Lightweight Disc Adapter Set 2: End Caps 12/15x100mm | 12x135/142mm Thru Axle
End caps to convert the Lightweight Meilenstein C Disc wheels to the 12x100mm or 15x100mm and 12x135mm or 12x142mm Thru Axle system.
Lightweight Disc Adapter Set 3: End Caps 9x100mm | 10x135mm Thru Bolt
End caps to convert the Lightweight Meilenstein C Disc wheels to the 9x100mm and 10x135mm DT Swiss Thru Bolt system. Incl. Thru Bolt QR.
*The sale of this product is excluded for customers in the United States, with the exception that it is an integral part in selling a complete bicycle.
