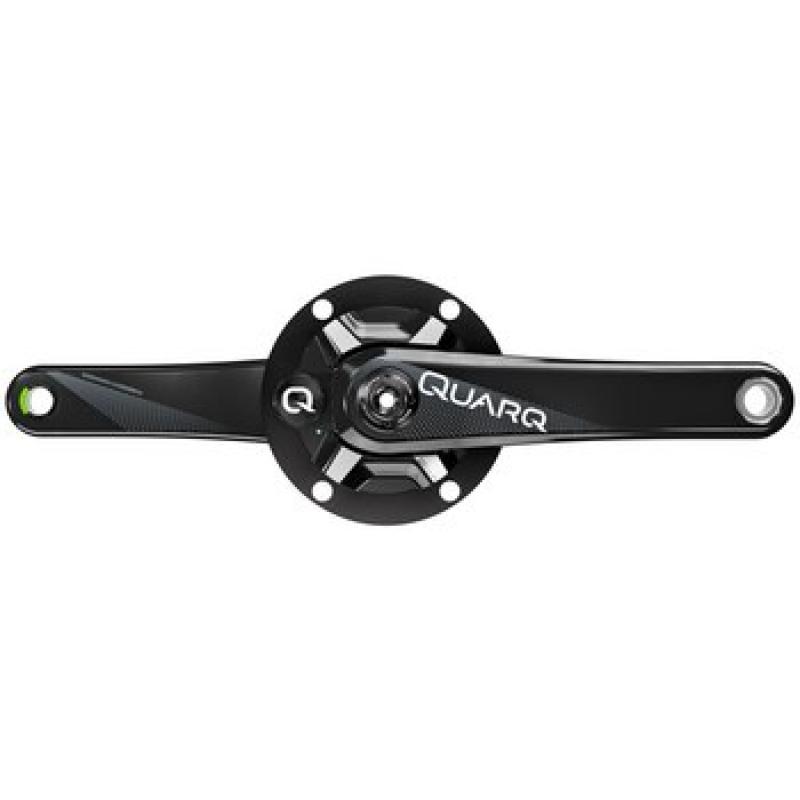

DFOUR: DZERO INNOVATION FOR SHIMANO BIKES
Every innovation in Quarq’s next-generation DZero platform is channeled into DFour. The power meter platform combines 10 years of technology advances with new features such as dual Bluetooth low energy and ANT+ wireless data transfer, the new Qalvin BLE app. The DFour power meter is a bolt-on upgrade for Shimano’s 11-speed Dura-Ace 9000, Ultegra 6800 and 105 5800 drivetrains.
Designed for Dura-Ace 9000 chainrings. Compatible with Ultegra 6800 and 105 5800 chainrings.
Must be paired with a compatible SRAM bottom bracket.
ELSA RS power meter owners can upgrade using the DFour Power Meter Spider.
Free firmware upgrades with the Qalvin app.
When Quarq set out to build the next generation Quarq power meter, they wanted to build the best-performing power meter for every facet of cycling and triathlon, and for riders at every level. Like its Quarq brethren, the new DFour measures power in the heart of the bicycle — the crankset spider, scientifically proven to be the place for the most accurate measurement. With a new measurement circuit, a revised strain gauge design, improved accuracy throughout the pedal stroke and software advances built into the Qalvin App, DFour represents the state of the art in power meter technology.
Quarq Technology:
10K temperature compensation
Eliminates variables caused by heat and cold to provide an unwavering record of your performance through all conditions.
Built to last
An IPX7 waterproof rating, an easy-to replace CR2032 battery, a 2-year warranty, free firmware updates and acclaimed worldwide support.
Easy to use (and reuse)
Manual and automatic zeroing make Quarq power meters truly set and forget. The chainrings are replaceable should your bike, discipline or ability change.
Qalvin BLE with Bluetooth®
For iOS and Android. With any phone you can set zero offset, check battery, run diagnostics and update firmware. Free.
Bluetooth low energy technology and ANT+ wireless data transfer.
AxCad - no magnet.
10K Temperature Compensation.
Battery - CR2032, 200-hour battery life, change without tools.
OmniCal - swap chainrings without affecting accuracy.
2-year warranty.
IPX7 waterproof rating.
Accuracy - within 1.5%, measuring both legs.
GXP
Material: crank arms: Exogram Hollow Carbon
spider: CNC machined aluminium
Weight: approx. 588 gram (manufacturer information)
Included in delivery: without bottom bracket cups and chainrings
Crank length: 170 mm | 172.5 mm | 175 mm
Fitting for derailleur: 10/11-speed shifting systems
Axle profile: GXP (22-24 mm), integrated BB axle
Recommended Bottom Bracket: GXP, Press Fit GXP
Bolt Circle: 110 mm, asymmetric, 4 arm
Q-Factor: 145 mm
BB30
Material: crank arms: Exogram Hollow Carbon
spider: CNC machined aluminium
Weight: approx. 588 gram (manufacturer information)
Included in delivery: without bottom bracket cups and chainrings
Crank length: 170 mm | 172.5 mm | 175 mm
Fitting for derailleur: 10/11-speed shifting systems
Axle profile: BB30, integrated BB axle
Recommended Bottom Bracket: BB30, Press Fit 30, BBright, BB386EVO, BB30A, PF30A
Bolt Circle: 110 mm, asymmetric, 4 arm
Q-Factor: 145 mm
