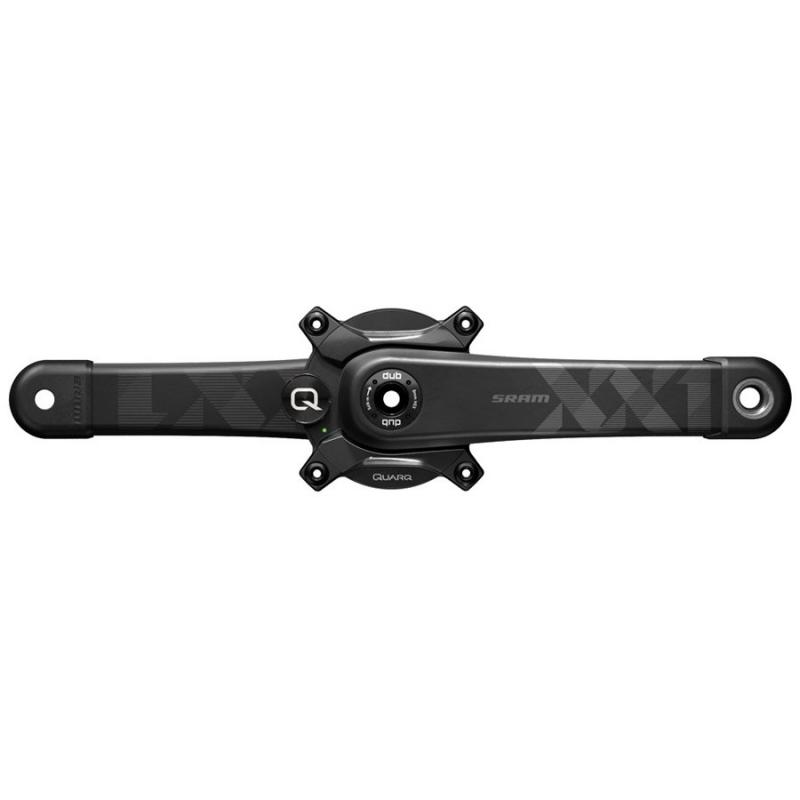

The Quarq | SRAM XX1 Eagle Power Meter unites Quarq’s DZero power meter platform with CARBON TUNED crank arms for robust, intuitive power measurement in one of the lightest ever chassis.
The DZero platform embodies 10 years of Quarq’s technology advances and adds new features such as dual Bluetooth low energy and ANT+ wireless data transfer, and the Qalvin BLE app. The SRAM XX1 Eagle power meter's companion X-SYNC 2 chainrings (separately available) are designed for Eagle chains and drivetrains, and made for the XX1 Eagle and XX1 power meters.
10K temperature compensation
Eliminates variables caused by heat and cold to provide an unwavering record of your performance through all conditions.
Built to last
An IPX7 waterproof rating, an easy-to replace CR2032 battery, a 2-year warranty, free firmware updates and acclaimed worldwide support.
Easy to use (and reuse)
Manual and automatic zeroing make Quarq power meters truly set and forget. The chainrings are replaceable should your bike, discipline or ability change.
Qalvin BLE with Bluetooth®
For iOS and Android. With any phone you can set zero offset, check battery, run diagnostics and update firmware. Free.
168Q CARBON TUNED crank arms – extreme stiffness and light weight.
Bluetooth low energy technology and ANT+ wireless data transfer.
AxCad - no magnet.
10K Temperature Compensation.
Battery - CR2032, 200-hour battery life, change without tools.
OmniCal - swap chainrings without affecting accuracy.
IPX7 waterproof rating.
Accuracy - within 1.5%, measuring both legs.
Requires an X-SYNC 2 or X-SYNC 104 BCD chainring.
Existing XX1 power meter owners can upgrade using an Eagle Power Meter Spider (Note: Boost spiders should not be paired with 156Q crank arms).
SRAM built the incredible new XX1 Eagle™ drivetrain to work quietly, intuitively, precisely and perfectly. Whether you're an hour and twelve minutes into a World Cup XC or, just about to hit the top of Pearl Pass-XX1 Eagle™ is ready for that and every place in between. This cross-country-optimized drivetrain combines the newest generation of SRAM 1x™ drivetrain technological advancements with lightweight materials. With a greater gear range of 500-percent, XX1 Eagle™ gives you smoother, more precise shifts with greater durability for long lasting performance so you can spend more time in the gear you want. XX1 Eagle™ just rewrote the rules of freedom.
Strong like bull, light like carbon. Every CARBON TUNED part is designed with a distinct style of riding in mind. By selectively layering woven carbon fiber at high-stress points and using unidirectional fiber throughout, SRAM creates components that yield a remarkable level of strength and durability-while remaining lightweight and responsive.
DUB™ technology features a better-engineered bottom bracket and a new spindle design. Together, these allow for a more uniform approach to bottom bracket fitment, better sealing against contamination and forward and backward compatibility. Now everyone can benefit from a new measure of durability.
Manufacturer item code: 170 mm: 00.3018.203.170 | 175 mm: 00.3018.203.175
Material: crank arms: CARBON TUNED™
spider: CNC machined aluminum
Weight: approx. 511 gram (manufacturer's specs)
Crank length (mm): 170 or 175 mm
Axle profile: DUB hollow spindle (28.99mm)
Recommended Bottom Bracket: DUB BSA 73mm / DUB PF 89,5mm / DUB PF 92mm / DUB PF30 / DUB BB30
Bolt Circle (mm): 104 mm
Chainline: 49 mm
Q-Factor: 168 mm
Included in delivery: crank
without bottom bracket cups
