Description

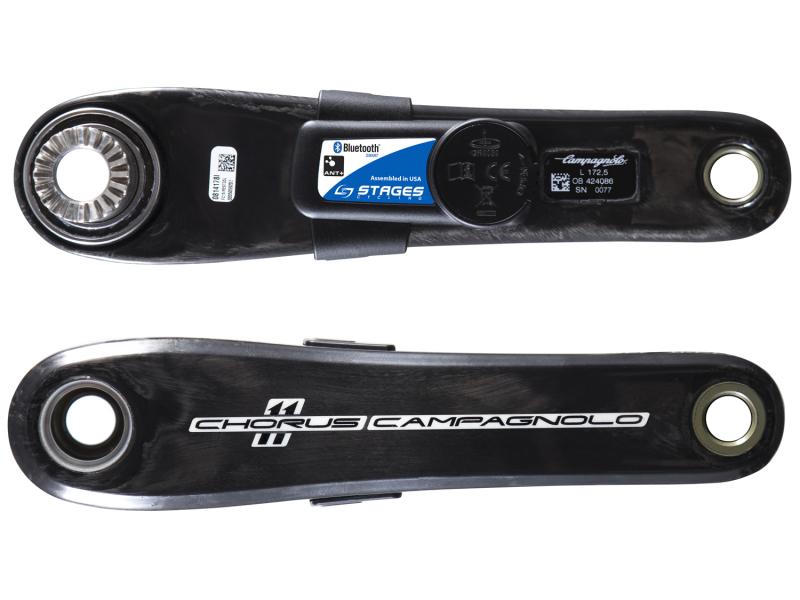

The Stages Power meter built onto a Campagnolo Chorus non-drive crank arm. This meter comes ready to bolt on, including Campagnolo’s Ultra-Torque non-drive bottom bracket bearing.
Stages Campagnolo power meters spent two years in the making and feature a custom developed strain gage that precisely measures your power through the structure of a Campagnolo-designed hollow carbon crank arm.
The new Stages Power meter is slimmer, and up to 28-percent lower profile than our original meter. It's sleeker by way of a 17-percent reduction in frontal area, and we've also made it stronger. The new housing design increases the strength of the battery door and housing connection by 200-percent over the previous design.
Specifications
Accuracy:± 2%
Power meter housing: New low profile design with new door interface
Weight:Only adds 20gr to base crank arm
Battery life:200+ hours (coin cell: CR2032)
Water resistance rating:IPX7
Power range (Watts):0 - 2500
Cadence range (rpm):20 - 220
Frame compatibility:Most frames, see fit guide in our Support section
Crank Compatibility: Campagnolo Chorus, Record
Device compatibility:ANT+, Bluetooth Smart Ready
Software compatibility:Training Peaks, Strava, Garmin Training Center and others
Options
Length:170mm, 172.5mm, 175mm
Additional Features
Tool free battery replacement
Active temperature compensation
Accelerometer based cadence measurement
Wireless firmware upgrades
