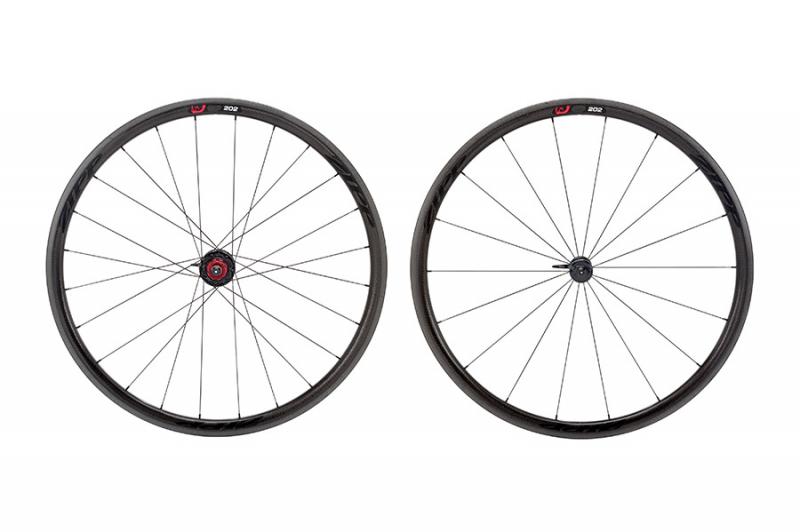

ZIPP 202 Clincher
Our 202 Firecrest® Carbon Clincher is all about aiming higher. We took our classic 202 wheelset -- the legendary climber’s companion -- and transformed it into a stiff, lightweight and aerodynamic speed weapon ideal for every road you travel. That’s the power of Firecrest and Carbon Clincher technologies. At 1,395 g, the new 202 is the lightest entry in the Firecrest Carbon Clincher lineup. The Zipp® 202 Firecrest Carbon Clincher retains the classic 32 mm rim depth of its predecessor though, with the Firecrest profile, now has a wider 25.4 mm max rim width. The results redefine what’s possible with a do-it-all classic road wheel.
Zipp’s two most profound wheel innovations, the Firecrest rim shape and Carbon Clincher technology, form the foundation of the new 202 Firecrest Carbon Clincher. Firecrest rims have a near-constant width from brake track to spoke bed to improve aerodynamics and better control airflow. We used Computational Fluid Dynamics software analysis to maximize aerodynamics and minimize wind-produced torque, resulting in a 202 Firecrest Carbon Clincher that is faster and better handling than a classic road wheel. Our Firecrest rim shape improves stability by moving the wheel’s center of pressure to sit almost directly over the steering axis, where wind-produced steering torque has a minimal effect.
Now, add to that our Carbon Clincher technology. Our exclusive resin, based on materials used in motorsports braking systems, effectively tolerates the incredible spikes in heat caused by braking to provide you with reliability and stopping power. Combine that with our Tangente Platinum brake pads and you have unmatched performance, all with the ease of use of a clincher.
New for 2014, the 202 Firecrest Carbon Clincher is built with a the latest iteration of our 188 rear hub, the V9, along with new spoke-lacing pattern for the rear wheel - refinements that result in improved stiffness and durability. The new hub was developed in cooperation of superstar sprinter Mark Cavendish of the Omega Pharma – Quick-Step Cycling Team and is in use by other top pro cyclists and triathletes including Pete Jacobs and Mirinda Carfrae.
Cavendish received early hub prototypes in January 2013 and logged 13,000 kilometers (8,078 miles) on continually refined variants, including his stage victories at the Giro d’Italia and the 2013 Tour de France. His feedback helped optimize the hub’s flange geometry, stiffness and weight.
The new 188/V9 hub has larger precision Swiss steel bearings for increased durability. Our new “virtual 3 cross” lacing on both sides of rear wheel improves stiffness, achieving 3 cross stiffness in a 2 cross pattern with a new spoke geometry. The 188/V9 has 25 percent more torsional stiffness than a leading competitive hub. This measure of stiffness is crucial for the direct power transfer to the rear wheel for out-of-the saddle sprints and climbs. The new hub also is laterally (side-to-side) stiffer that its rival or predecessor.
Set Weight 1450g
Max recommended rider weight 250lbs
Front Wheel
Weight 635g
Hub Used 77
Rim Depth 32mm
Brake Track Width (center) 24.62mm
Max Width 25.4mm
Clincher Bead Width 16.25mm
Spokes Sapim® CX-Sprint
Spoke Count 18
Spoke Pattern Radial
Spoke Length 274
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
Track Adaptable No
Dimpled Surface Yes
Nipples Sapim®
External Nipples Yes
Rear Wheel
Weight 815g
Hub Used 177
Rim Depth 32mm
Brake Track Width (center) 24.62mm
Max Width 25.4mm
Spokes Sapim® CX-Sprint
Spoke Count 24
Spoke Pattern Non-Drive 2 cross
Spoke Pattern Drive 2 cross
Spoke Length Non-Drive 284mm
Spoke Length Drive 284mm
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
11-speed compatible hub Yes
Track Adaptable No
Dimpled Surface Yes
Nipples Sapim®
External Nipples Yes
