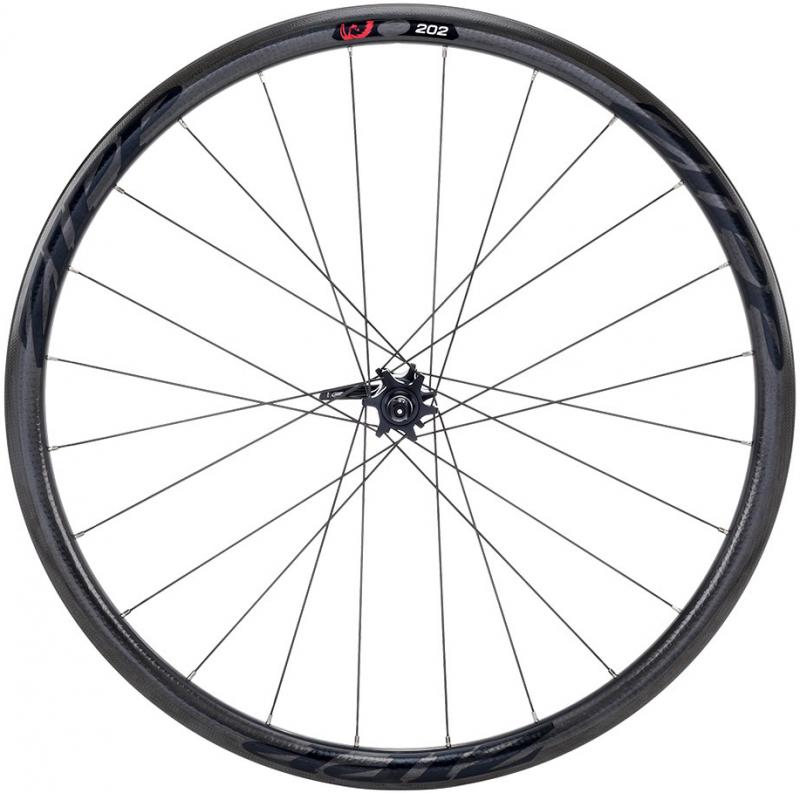

The Zipp 202 Firecrest Carbon Clincher Disc-brake wheelset is all about new technology and new adventure. And a new era for road bikes. This trend-defining wheelset is now improved with the durable and versatile 77/177D hubset. That innovation means the 202 Firecrest Carbon Clincher Disc-brake wheelset is now thru-axle compatible.
The 77/177D hubset combines with Zipp’s Firecrest technology to offer everything you look for in a disc-brake road wheel. The
Zipp 202 Firecrest Carbon Clincher Disc-brake delivers the enhanced modulation and stopping power of disc-braking, whether you stay on the road or venture into less tame territory. At 32mm deep utilizing Zipp’s revolutionary Firecrest design, this wheel has the aerodynamic resume of wheels twice its depth yet handles more predictably than a shallow box-section wheel.
To exceed the demands of gravel and adventure road riding, the 202 Firecrest Carbon Clincher Disc-brake wheelset also is laced using Sapim® brass nipples for increased stiffness and durability in all conditions.
About the 77/177D hubset:
Bearing preload precision set – that means no pre-load adjustment is needed.
Improved bearing protection and sealant.
Includes newly designed quick-release skewers with a wider more ergonomic handle to provide more leverage for opening and closing. When closed, lever contours neatly with the frame.
Thru-axle compatible. Comes with thru-axle end caps that can be swapped by hand:
Front: 12x100mm & 15x100mm
Rear: 12x135mm & 12x142mm
Proprietary flange geometry and spoke hole attachment pattern with Sapim® CX-Ray® spokes to optimize torsional and lateral stiffness without sacrificing weight or robustness.
New distinctive hub graphics.
17mm axle
The 202 Firecrest Carbon Clincher Disc-brake wheelset comes with a standard 10/11 speed driver body for SRAM®/Shimano® or for Campagnolo®, allowing you to run a wide range of cassettes. For those looking for a wider gear range, or tackling especially extreme terrain, a SRAM XD driver body for 177D (sold separately) is easily installed to allow for more cassette options. A 1.85mm spacer is included with the XD driver body and is required for use on the 177D hub. XD driver body compatible with 11-speed cassettes only.
The 77/177D hubset is surrounding by two most profound wheel innovations -- the Firecrest rim shape and Carbon Clincher technology. Firecrest rims have a near-constant width from brake track to spoke bed to improve aerodynamics and better control airflow. We used Computational Fluid Dynamics software analysis to maximize aerodynamics and minimize wind-produced torque, resulting in a 202 Firecrest Carbon Clincher Disc-brake wheelset that is faster and better handling than a classic road wheel. Our Firecrest rim shape improves stability by moving the wheel’s center of pressure to sit almost directly over the steering axis, where wind-produced steering torque has a minimal effect.
The 202 Firecrest Carbon Clincher Disc-brake wheelset comes with two decal options, the stealthy Beyond Black or the distinctive Classic White decals. Both decal options feature black anodized hubs, black spokes and silver nipples.
Each wheel includes 2 sets of Zipp thru-axle end caps, 1 Zipp skewers, 1 rolls of Zipp rim tape 700c x 20mm and 1 Zipp valve extenders. Rear wheel includes 1.85mm spacer for use with 10-speed cassettes.
Set Weight 1530g
Max recommended rider weight 250lbs
Front Wheel
Weight 705g
Hub Used 77D
Hub Width 100mm
Rim Depth 32mm
Brake Track Width (center) 24.62mm
Max Width 25.4mm
Spokes Sapim® CX-Ray®
Spoke Count 24
Spoke Pattern 2 cross
Spoke Length Drive 284mm
Spoke Length Non-Drive 282mm
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
Dimpled Surface Yes
Nipples Brass Sapim® Secure Lock
External Nipples Yes
Thru Axle Compatible Yes
Rear Wheel
Weight 825g
Hub Used 177D
Hub Width 135mm 142 with thru-axle caps
Rim Depth 32mm
Brake Track Width (center) 24.62mm
Max Width 25.4mm
Spokes Sapim® CX-Ray®
Spoke Count 24
Spoke Length Non-Drive 284mm
Spoke Pattern Non-Drive 2 cross
Spoke Pattern Drive 2 cross
Spoke Length Drive 282mm
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
11-speed compatible hub Yes
Dimpled Surface Yes
Nipples Brass Sapim® Secure Lock
External Nipples Yes
Thru Axle Compatible Yes
XD Driver Body Compatible Yes
