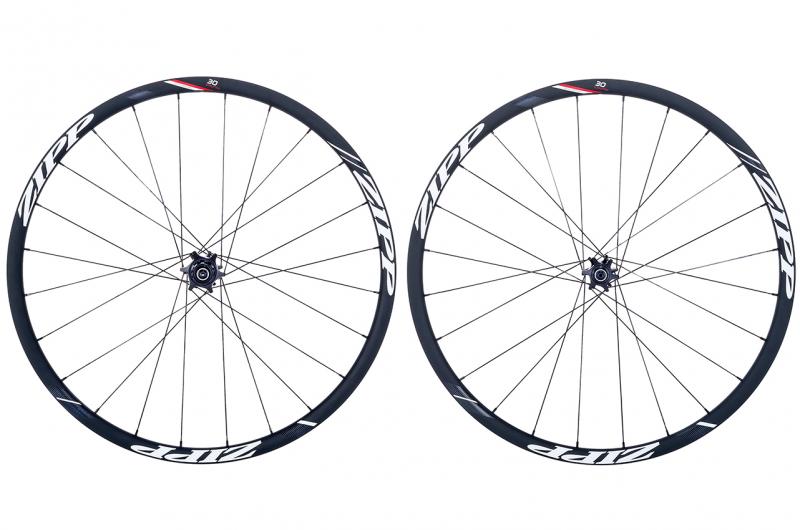

Zipp’s 30 Course Disc-brake Clincher aluminum wheelset is as packed full of innovations as your best day on a bike was packed with euphoria. The 30 Course Disc-brake Clincher’s durable wide rim profile offers enhanced aerodynamic efficiency as well as better comfort and cornering grip. This is a high-performance aluminum wheelset engineered to provide versatility for the new era of road cycling that includes disc-brake road applications but also cyclocross and gravel adventures, riding or racing.
New Aluminum-Rim Technology
The 30 Course Clincher is Zipp’s first wheelset to be tubeless-ready, providing the ability to run lower tire pressures without risk of pinch flats. The 30 Course Disc-brake wheelset, with its external 25mm rim width and 21mm internal width, incorporates design innovations from the Zipp 202 Firecrest Carbon Clincher profile for low aerodynamic drag, greater stability and predictability in crosswinds. That wider rim platform allows for increased air volume, which spreads the tire casing. That helps increase the contact patch with the ground. The result is improved cornering grip and increased comfort on the road, mud and everything in between.
New Hub Technology With the 77/177D
Engineered for versatility, durability and simplicity. Same 77/177D hubset used in Zipp 202 and 303 Firecrest Disc-brake wheelsets.
Bearing preload precision set – that means no pre-load adjustment is needed.
Improved bearing protection and sealant.
Includes newly designed quick-release skewers with a wider more ergonomic handle to provide more leverage for opening and closing. When closed, lever contours neatly with the frame.
Thru-axle compatible. Comes with thru-axle end caps that can be swapped by hand:
All this means the 30 Course Disc-brake is a multi-use wheelset that delivers speed, stability, comfort and the superior power and modulation of disc braking over any terrain.
Set Weight 1,650g
Max recommended rider weight 250lbs
Front Wheel
Weight 770g
Internal Diameter 21mm
Hub Used 77D
Hub Width 100mm
Rim Depth 26mm
Max Width 25mm
Spokes Sapim® CX-Ray®
Spoke Count 24mm
Spoke Pattern 2 cross
Spoke Length Drive 290mm
Spoke Length Non-Drive 290mm
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
Track Adaptable No
Dimpled Surface No
Nipples Sapim® Secure Lock
External Nipples Yes
Rear Wheel
Weight 880g
Internal Diameter 21mm
Hub Used 177D
Hub Width 135mm
Rim Depth 26mm
Brake Track Width (center) 26.4mm
Max Width 25mm
Spokes Sapim® CX-Ray®
Spoke Count 24
Spoke Length Non-Drive 290mm
Spoke Pattern Non-Drive 2 cross
Spoke Pattern Drive 2 cross
Spoke Length Drive 290mm
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
11-speed compatible hub Yes
Track Adaptable No
Dimpled Surface No
Nipples Sapim® Secure Lock
External Nipples Yes
Thru Axle Compatible Yes
XD Driver Body Compatible Yes
