Zipp’s new 30 Course Clincher rim-brake wheelset puts you tête de la Course… the head of the race, or the gran fondo, or your own riding adventure. This new wheelset rewrites Zipp’s own stringent rules for performance, durability and versatility in an aluminum wheelset. The 30 Course’s wide rim profile and new hubset are engineered to deliver speed, stability and comfort over any surface road bikes are tackling these days… smooth (and rough) pavement, gravel, dirt… whatever. This is Zipp’s first rim-brake tubeless-ready wheelset, providing the ability to run lower tire pressures without the risk of pinch flats.
With external 25mm and internal 21mm rim widths, the 30 Course’s rim shape incorporates design innovations from the Zipp 202 Firecrest® Carbon Clincher profile, resulting in low aerodynamic drag as well as greater stability and predictability in crosswinds. The wider rim platform allows for increased air volume, which spreads the tire casing. This helps increase the contact patch with the ground. The result is improved cornering grip and increased comfort.
The 30 Course also features the new 77/177 hubset, the same now being used in Zipp’s pro-proven 202 Tubular and Firecrest rim-brake wheelsets.
Optimized flange geometry and spoke hole attachment pattern with Sapim® CX Ray spokes.
New robust hub platform with distinctive graphics.
17mm axle.
For those looking for a wider gear range, or tackling especially extreme terrain, an XD driver body for 177 is sold separately and easily installed to allow for more cassette options including a 10-42. The hubset is designed to swap driver bodies without re-dishing the wheel.
The 30 Course Rim-brake wheelset also includes newly designed quick-release skewers with a wider more ergonomic handle to provide more leverage for opening and closing. When closed, the new lever contours neatly with the frame.
Set Weight 1570g
Max recommended rider weight 250lbs

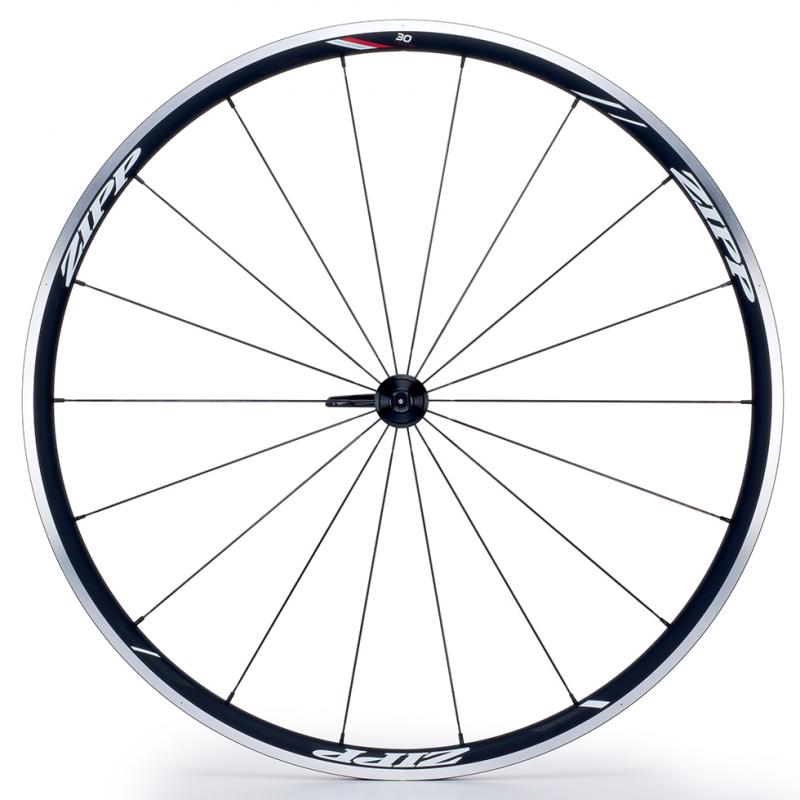

Front Wheel
Weight 700g
Hub Used 77
Rim Depth 26mm
Max Width 25mm
Internal Width 21mm
Spokes Sapim® CX-Ray®
Spoke Count 18
Spoke Pattern Radial
Spoke Length 280mm
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
Track Adaptable No
Dimpled Surface No
Nipples Sapim® Secure Lock
External Nipples Yes
Rear Wheel
Weight 870g
Hub Used 177
Rim Depth 26mm
Max Width 25mm
Internal Width 21mm
Spokes Sapim® CX-Ray®
Spoke Count 24
Spoke Length Non-Drive 292mm
Spoke Pattern Non-Drive 2 cross
Spoke Pattern Drive 2 cross
Spoke Length Drive 290mm
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
11-speed compatible hub Yes
Track Adaptable No
Dimpled Surface No
Nipples Sapim® Secure Lock
External Nipples Yes
