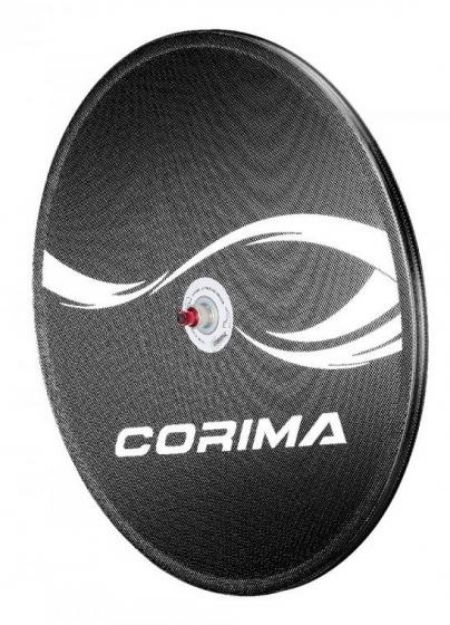

CORIMA CN Disc Wheel
With its monocoque structure, the carbon cn carbon disc wheel is light and stiff enough to be the winning wheel for triathlon, time-trial and track.
Corima 2D Concept:
CORIMAS latest aerodynamic research carried out in their research centre has led to a new rim design thats called Concept 2D. This new shape improves air flow and increases the rigidity of the tubular rim.
Front CN DISC carbon wheel tubular
Products Ref T100600 / 26" 650C
T100800 / 28" 700C
FR / RR FR
Type of use Road
Carbon Weave Carbon 3K
CN / C+ CN
HR / HM No
Clincher / Tubular Tubular
Width 22.6 mm
Profile No
Weight 730 g (26" 650C) - 810 g (28" 700C)
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20020
Quick release skewer No
Valve extender Supplied
Pair of brake pads No
Protection wheelbag Supplied
Front track bolts Supplied
Integrated magnet No
Option of ceramic bearings Supplied
Rear CN DISC carbon wheel tubular
Products Ref T100604 / 26" 650C - Campagnolo 9/10/11Sp.
T100605 / 26" 650C - Shimano 9/10/11Sp. Sram T100804 / 28" 700C - Campagnolo 9/10/11Sp.
T100805 / 28" 700C - Shimano 9/10/11Sp. Sram
FR / RR RR
Type of use Road
Carbon Weave Carbon 3K
CN / C+ CN
HR / HM No
Clincher / Tubular Tubular
Width 22.6 mm
Profile No
Weight 860 g (26" 650C) - 965 g (28" 700C)
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20018 Campagnolo 9/10/11Sp. / T20017 Shimano 9/10/11Sp. Sram
Quick release skewer Supplied
Valve extender Supplied
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts No
Integrated magnet No
Option of ceramic bearings Not available
CORIMA Carbon+ Disc Wheel
The C+ disc wheel has an extra carbon coating compared to the CN disc wheel. The C+ wheel is therefore 20% stiffer than the slightly lighter CN wheel and can be take some beating! It is particularly suitable for use on the track or on tandem. A truly record-breaking disc wheel.
Corima 2D Concept:
CORIMAS latest aerodynamic research carried out in their research centre has led to a new rim design thats called Concept 2D. This new shape improves air flow and increases the rigidity of the tubular rim.
Rear C+ DISC carbon wheel tubular
Products Ref T100904 / 28" 700C - Campagnolo 9/10/11Sp.
T100905 / 28" 700C - Shimano 9/10/11Sp. Sram
FR / RR RR
Diameter 28" (700C)
Type of use Road
Carbon Weave Carbon 3K
CN / C+ C+
HR / HM No
Clincher / Tubular Tubular
Width 22.6 mm
Profile No
Weight 1030 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20018 Campagnolo 9/10/11Sp. / T20017 Shimano 9/10/11Sp. Sram
Quick release skewer Supplied
Valve extender Supplied
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts No
Integrated magnet No
Option of ceramic bearings Not available
Front CN DISC carbon wheel tubular for track
Products Ref T100801
FR / RR FR
Diameter 28" (700C)
Type of use Track
Carbon Weave Carbon 3K
CN / C+ CN
HR / HM No
Clincher / Tubular Tubular
Width 22.6 mm
Profile No
Weight 855 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20020
Quick release skewer No
Valve extender Supplied
Pair of brake pads No
Protection wheelbag Supplied
Front track bolts Supplied
Integrated magnet No
Option of ceramic bearings Option
Rear CN DISC carbon wheel tubular for track
Products Ref T100802
FR / RR RR
Diameter 28" (700C)
Type of use Track
Carbon Weave Carbon 3K
CN / C+ CN
HR / HM No
Clincher / Tubular Tubular
Width 22.6 mm
Profile No
Weight 1040 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20014
Quick release skewer No
Valve extender Supplied
Pair of brake pads Not available
Protection wheelbag Supplied
Front track bolts Supplied with 2 rear track blocking screws
Integrated magnet Not available
Option of ceramic bearings Option
Front C+ DISC carbon wheel tubular for track
Products Ref T100901
FR / RR FR
Diameter 28" (700C)
Type of use Track
Carbon Weave Carbon 3K
CN / C+ C+
HR / HM No
Clincher / Tubular Tubular
Width 22.6 mm
Profile No
Weight 890 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20020
Quick release skewer No
Valve extender Supplied
Pair of brake pads No
Protection wheelbag Supplied
Front track bolts Supplied
Integrated magnet No
Option of ceramic bearings Option
Rear C+ DISC carbon wheel tubular for track
Products Ref T100903
FR / RR RR
Diameter 28" (700C)
Type of use Track
Carbon Weave Carbon 3K
CN / C+ C+
HR / HM No
Clincher / Tubular Tubular
Width 22.6 mm
Profile No
Weight 1090 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20014
Quick release skewer No
Valve extender Supplied
Pair of brake pads No
Protection wheelbag Supplied
Front track bolts Supplied with 2 rear track blocking screws
Integrated magnet No
Option of ceramic bearings Option
