Delivery time: 4-6 weeks
Bianchi renews the Methanol CV range with the introduction of the new RS and S versions, both engineered with Bianchi CV System and designed to be a new advantage in cross country mountain bike racing.
AFTER SHOCK CONTROL
Engineered with Bianchi CV System, using Countervail®’s unique carbon fiber architecture and viscoelastic resin, Methanol CV RS and S deliver total “After-Shock Control” by eliminating vibrations that pass through the suspension after impact and from trail buzz. “After-Shock Control” delivers an entirely new level of ride quality, with increased accuracy, reduced muscular fatigue and total performance.
WHAT IS COUNTERVAIL®?
The key technology Countervail® is a carbon composite-material system that combines patented structural carbon with viscoelastic resin.
BIANCHI CV INTEGRATED VIBRATION CANCELLING SYSTEM
Bianchi collaborated with Materials Sciences Corporation to develop our innovative and exclusive use of the MSC’s patented Countervail® integrated vibration cancelling system for cycling.
Countervail® is a carbon composite-material system that, with special fiber architecture, combines patented structural carbon with viscoelastic resin. Countervail® cancels 80% of vibrations while increasing the stiffness and strength of our carbon frames and forks.
Countervail® is embedded within the entire frame of Bianchi CV high-performance road and MTB models: Specialissima, Oltre XR4, Oltre XR3, Infinito CV, Aquila CV and Methanol CV.
PROVEN IN NASA AEROSPACE OPERATIONS
Traditional passive damping in frames using superficial rubber inserts and isolators are marginally effective compared to the integrated carbon Countervail® system developed by Bianchi for cycling and proven in the extreme conditions of NASA aerospace operations.
DEVELOPED WITH THE PROS
Bianchi Methanol CV RS and Methanol CV S have been developed with the help and inputs of the Team Bianchi – Countervail Pro bikers, including Stephane Tempier and Marco Aurelio Fontana

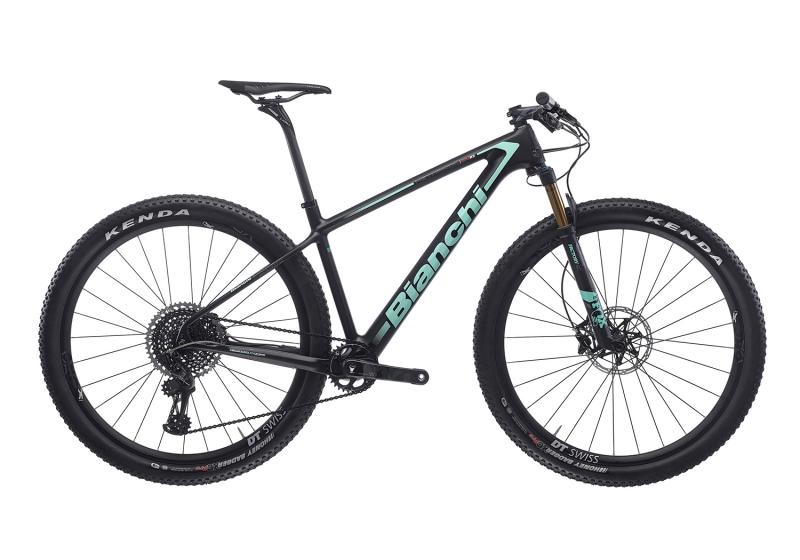

METHANOL CV RS
Methanol CV RS has been engineered to be the best XCO and XCM racing machine, without compromises.
The new frame shape and structure saves weight, improves steering response and accuracy.
Frame’s weight in size 43 is 940gr.
NEW GEOMETRY
Geometry has been optimized to respond to the new faster, rougher race tracks by adding a longer reach and a slacker head tube angle. This creates a more confident feel for the rider at speed and a greater ability to attack the trail, especially in corners and steep descents.
CLEARANCE
Improved clearance in the chainstays allows to accomodate larger tyres up to 58mm width in wet, muddy conditions.
KEY FEATURES
•Countervail vibration cancelling technology
•12x148mm Boost thru axle
•Di2 compatible, dropper seatpost compatible w/internal cable routing
•Updated geometry w/longer reach and slacker HT angle
•Weight 940g (+/-5%, size 17”, MN color)
•4 size available (15, 17, 19 & 21’’)
•Tavolozza on-line color configurator
TECHNICAL FEATURES
Sizes
38-43-48-53
Frame
Methanol CV RS 29" carbon HM monocoque w/Countervail, 1.5" tapered HT, Pressfit BB92 (41x92mm), 1x drivetrain only, 27,2mm seatpost, PM 160mm carbon dropout 12x148mm BOOST, internal cable routing Di2 compatible, sizes 15,17,19,21"
Fork
Fox 32 SC 29" Factory Kashima remote, 100mm travel
Headset
Fsa Orbit C-40
Shifters
Shimano XTR SL-M9100IR 1x12sp
Rear derailleur
Shimano XTR RD-M9100 SGS 12sp
Crankset
Shimano XTR FC-M9100-1 34T, Hollowtech II, 162mm Q-Factor, 52mm chain line, crank lenght: 170mm-15", 175mm-17/21"
BB
Shimano SM-BB94-41A
Chain
Shimano CN-M9100, 12sp
Sprocket
Shimano CS-M9100-12, 10-12-14-16-18-21-24-28-33-39-45-51T
Brakes
Shimano XTR M9100
Wheels
DT Swiss XR1501 Spline 29" 25mm (standard)
Tire
Kenda Honey Badger XC Pro 29x2.20
Stem
Fsa SL-K 3D Forged/CNC AL2014 w/UD Carbon faceplate, +/-12º, 1.1/8", diam. 31,8mm, ext: 70mm-15", 80mm-17'', 90mm-19/21"
Handlebar
Fsa SL-K flat AL6066 w/carbon wrap, width 700mm, diam. 31.8mm, backsweep 9°, upsweep 4°
Grips
T-One T-GP43X
Seatpost
Fsa SL-K, UD Carbon shaft, Forged alloy ITC, diam. 27,2mm, 0-15 mm seatback, length: 350mm-15", 400mm-17/21"
Saddle
Fi'zi:k Taiga
Rotor
Shimano RT86 6-Bolt type w/Ice Tech, 180mm front and 160mm rear
Pedals
included
Waterbottle
Elite Corsa 550ml, Team Replica
Water bottle hanger
Elite Paron composit
