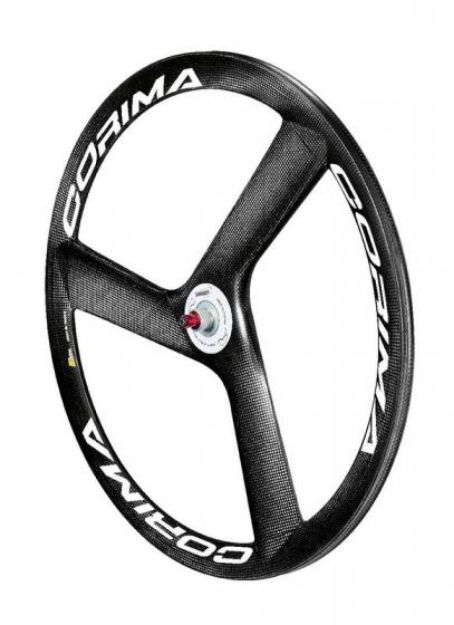

ORIMA 3 Spoke - High Modulus
With its monocoque structure, the 3 Spoke carbon wheel is the winning wheel for triathlon, time-trial and track. The spokes are shaped like a drop of water with an aerodynamic leading- and trailing edge.
The front wheel is very light, only 655g, it has an integrated magnet for use with a bike computer and its front "Chrono" hub is built with ceramic bearings
The tubular tyre variant of the Carbon front wheel is made of HM 3K Carbon, furthermore it´s characterized by the following specs:
Front road
Products Ref T141000
FR / RR FR
Diameter 28" (700C)
Type of use Road
Carbon Weave Carbon 3K
CN / C+ No
HR / HM HM
Clincher / Tubular Tubular
Width 22.6 mm
Profile 47 mm
Weight 655 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20015
Quick release skewer Supplied
Valve extender Supplied
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts Option
Integrated magnet Supplied
Option of ceramic bearings Supplied
Front Track
Products Ref T141101
FR / RR FR
Diameter 28" (700C)
Type of use Track
Carbon Weave Carbon 3K
CN / C+ No
HR / HM HM
Clincher / Tubular Tubular
Width 22.6 mm
Profile 47 mm
Weight 690 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20020
Quick release skewer No
Valve extender Supplied
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts Supplied
Integrated magnet Supplied
Option of ceramic bearings Supplied
Rear road
Products Ref T141103 / Campagnolo 9/10/11Sp.
T141104 / Shimano 9/10/11Sp. Sram
FR / RR RR
Diameter 28" (700C)
Type of use Road
Carbon Weave Carbon 3K
CN / C+ No
HR / HM HM
Clincher / Tubular Tubular
Width 22.6 mm
Profile 47 mm
Weight 800 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20018 Campagnolo 9/10/11Sp. / T20017 Shimano 9/10/11Sp. Sram
Quick release skewer Supplied
Valve extender Supplied
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts No
Integrated magnet Supplied
Option of ceramic bearings Not available
