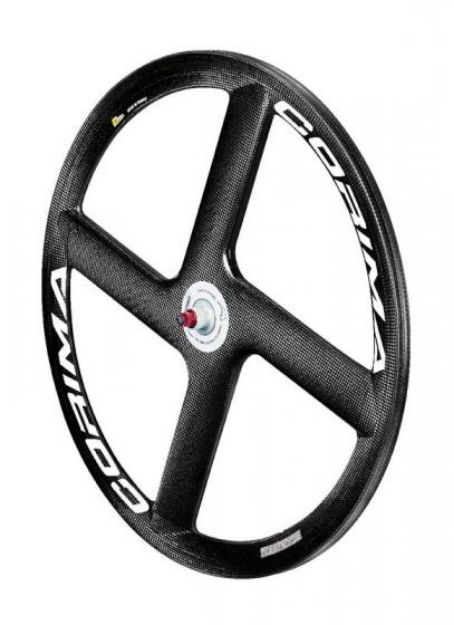

The 4 Spoke carbon wheel is the worldwide reference of monocoque carbon wheels.
New design and profile ! The profile of the rim with the 2D concept and the shape of the spokes like a drop of water (leading edge and trailing edge) make it very aerodynamic.
The front wheel is very light, only 705g, it has an integrated magnet for use with a bike computer and its front "Chrono" hub is built with ceramic bearings.
Created from the beginning to be a versatile wheel, it is perfect for road use (time-trial and triathlon) and for track use thanks to its excellent lateral stiffness.
The 4 Spoke wheel is produced in HM version (High Modulus carbon fibres)
Front road
Products Ref T110700
FR / RR FR
Diameter 28" (700C)
Type of use Road
Carbon Weave Carbon 3K
CN / C+ No
HR / HM HM
Clincher / Tubular Tubular
Width 22.6 mm
Profile 47 mm
Weight 705 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20015
Quick release skewer Supplied
Valve extender Supplied
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts Option
Integrated magnet Supplied
Option of ceramic bearings Supplied
Rear road
Products Ref T110704 / Campagnolo 9/10/11Sp.
T110705 / Shimano 9/10/11Sp. Sram
FR / RR RR
Diameter 28" (700C)
Type of use Road
Carbon Weave Carbon 3K
CN / C+ No
HR / HM HM
Clincher / Tubular Tubular
Width 22.6 mm
Profile 47 mm
Weight 845 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20018 Campagnolo 9/10/11Sp. / T20017 Shimano 9/10/11Sp. Sram
Quick release skewer Supplied
Valve extender Supplied
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts No
Integrated magnet Supplied
Option of ceramic bearings Not available
Front track
Products Ref T110701
FR / RR FR
Diameter 28" (700C)
Type of use Track
Carbon Weave Carbon 3K
CN / C+ No
HR / HM HM
Clincher / Tubular Tubular
Width 22.6 mm
Profile 47 mm
Weight 730 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20020
Quick release skewer No
Valve extender Supplied
Pair of brake pads Supplied
Protection wheelbag Supplied
Front track bolts Supplied
Integrated magnet Supplied
Option of ceramic bearings Supplied
Rear track
Products Ref T110703
FR / RR RR
Diameter 28" (700C)
Type of use Track
Carbon Weave Carbon 3K
CN / C+ No
HR / HM HM
Clincher / Tubular Tubular
Width 22.6 mm
Profile 47 mm
Weight 930 g
Maximum Air Pressure There is no maximum air pressure for tubular wheels except the one recommanded by the manufacturer of the tubular tire you're going to set on your wheel.
Hub reference T20014
Quick release skewer No
Valve extender Supplied
Pair of brake pads No
Protection wheelbag Supplied
Front track bolts Supplied with 2 rear track blocking screws
Integrated magnet Yes
Option of ceramic bearings Not available
