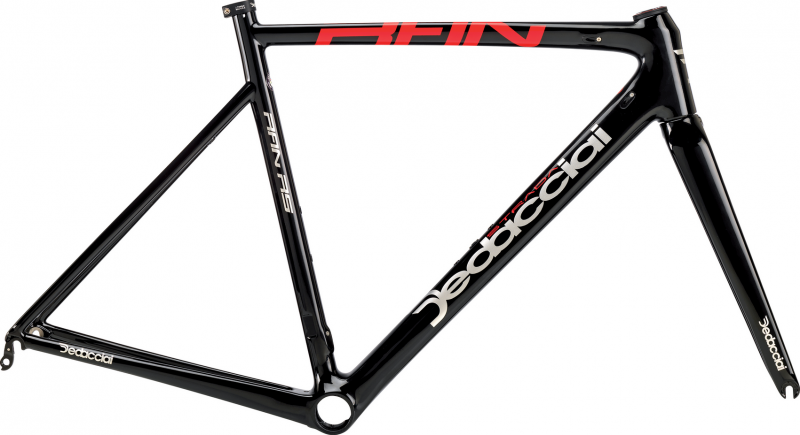

Delivery time: 4-6 weeks after the order The RAN frame, developed and engineered in order to astonish the most demanding athlete, has been furtherly enriched of technical contents and it is now lighter than ever. RAN is now RAN RS UCI certificated in order to offer an extraordinary handmade product unique in its range. RAN RS is synonymous of extraordinary lightness, rigidity and absolute drivability. The R&D department has directed the RAN RS production with the best building knowledge available with the best partners. From the carbon fiber to the moulding production, from the design to the lightest paints; those elements have contributed to grow the new generation of the Dedacciai Strada frames The result of the RAN RS frame is very clear: 9200 gr of weight for the painted M size and fork of only 330 gr. All carbon tube diameters and dimensions have been reduced without weakening the monocoque structure. Specifically the seat tube has been reduced to 27,2 mm from the currently fashionable diameter of 31,6 mm. The rear stay has been designed to offer a damping element on every kind of pavement with 51° seat stays to the ground. That inclination creates an off-set of 6 cm between seat stays and seat tube. The advantage of the rear moulding reduces the use of raw material hence the weight of the complete frame. Bottom bracket type PF-30 full carbon and steering bearing carbon supports in order to cut each further grams. The engineering process has focused particular attention to the stressed sections: bottom bracket, head tube and seat tube in order to maintain an high stiffness ratio and to maintain parallel alignment of the wheel axes during the pedal stroke. The main features of the RAN RS frame are stability and comfortable riding performance. Tapered steer of 1-1/8” on the top and 1-1/4” bottom with carbon cups, which offers balance on every kind of pavement, and superior handling precision. RAN RS has been equipped with an innovative monocoque carbon fork with carbon steerer tube, crown and blades. The straight blades allow maneuverability, agility and precision, particularly on descents, thanks to a rake of 45 mm. The rear brake cable is positioned inside the top tube through special hidden cable stops. That system reduces total weight and improves the eye-catching look. RAN RS is fully compatible with mechanical and electronic shifting systems by running the cables inside the down tube and in the chain stays, via an internal bottom bracket passage. The refined attention to detail could be seen in the routing of the rear derailleur wire through the alloy rear dropout. The frame is also compatible with cable-operated shifting systems. That double compatibility is obtained by replacing small parts through the “cable stop” system described above. RAN RS is equipped with PF 30 (press fit 30) with bottom bracket length of 68 mm. Dedacciai offers BB30 and BSA adaptors as spare parts. Monocoque carbon fiber frame highest modulus MRC MR60/HR40 Monocoque carbon fiber frame highest modulus MRC MR60/HR40 Frame weight 920 g for M size Five sizes XS, S, M, L, XL Bottom bracket PF30, BSA and BB30 adaptors as spare parts UD external layer Full Inner cable routing Electronic and mechanical devices compatible Seat tube ID 27,2 mm Monocoque fork weight 325 g Tapered headtube 1”1/8 – 1”1/4 Integrated full carbon Dedacciai headset SSDIFF15114 Dedacciai fork compatible and recommended MFF001Z150 COLORS: bob/red , bob/black
