Delivery Time : 3/4 weeks
This model is not available in the United States

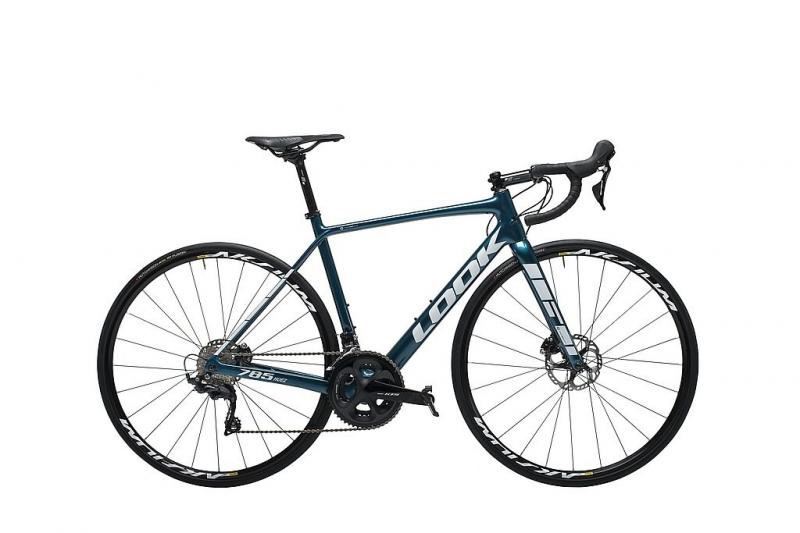

785 HUEZ Disc
The 785 HUEZ DISC is a variation of the 785 HUEZ RS, from which it directly takes it shape. Made from the same mold, this version benefits from all the optimization research, but is constructed from a different blend of carbon fibers.
It is already an exceptional carbon frame, a great foundation, and as a bicycle as a whole, one which you may easily add personal upgrades to over time. Without a doubt, this bicycle will delight young competitors and passionate cyclists alike who are looking for an efficient, comfortable and versatile bicycle.
The frame weighs only 990 grams. The 785 HUEZ DISC has already made its entrance into the very light bicycle realm, but this is far from its only asset. Equipped with a 100% carbon tapered down tube and bottom bracket shell, pedal power is transferred to its maximum. Ultra-slim seat stays contribute to rider comfort, and a 27.2mm seatpost, strategically chosen for its flexibility properties, enhances that comfort even more.
The bicycle’s precise handling and stability are assured thanks to its rigid fork and head tube. This is especially important for a bicycle destined for the mountains because the fact that it climbs well is not enough. It must also be and feel safe and reliable when descending. In the Tour de France, the descents down the towering cols can also make a difference.
Light, rigid, stable, and comfortable, the 785 HUEZ DISC is a phenomenally versatile bicycle. It not only climbs well in the mountains, but is also highly effective on the flats, long distance rides in rolling hills, such as «Gran Fondos», and great for anything short and fast, like criteriums.
NANO LAYER CONSTRUCTION.
With over 30 years of carbon technology know-how, skill and expertise, LOOK engineers, in their manufacturing facility, ultra-precisely define the position and orientation of each of the thin layers of carbon used to create their tubes.
OPTIMIZED INERTIA SECTION.
To create the 785 HUEZ DISC, we began by studying and improving the shape of all of the tubes. Optimizing the shape requires defining the design that provides the maximum inertia for each tube, that is to say, to choose the optimal length, size and shape that produces the best stiffness-to-weight ratio.
We therefore, opted for a sleek and sophisticated design based on precise research, entirely focused upon the search for efficiency and performed by our engineers, to create an ultralight bicycle with the best possible characteristics. A tube sidewall thickness of 0.6 mm was ultimately chosen.
HIGH MODULUS CARBON.
Once the optimal length, size and tube thickness have been determined, the next step is to establish the ideal carbon composition to achieve our objective, the creation of the best bicycle made for climbing. To accomplish this, the recipe is similar to that of gastronomic cuisine. To make the best dish, one needs ingredients of the highest quality. LOOK has therefore selected only superior carbon fibers, including the finest of the high modulus, to create the HUEZ 785. We have chosen four different types of carbon, each one selected for its outstanding quality in its category.
Technical Spec.:
Frame UD Carbon-finish High Modulus carbon frame. Ultra Light High Modulus carbon fork. Ultra light integrated headset compatible seat post diameter 27.2 mm
Seatpost LOOK LS2 CARBON 27.2 mm 350 mm
Saddle LOOK by San Marco short fit carbon FX narrow open fit
Stem LOOK LS1 ALLOY SUPER LIGHT ( XS 90 / S 100 / M-L 110 / XL 120 )
Handlebar LOOK LS2 ALLOY ( XS-S 40 / M-L 42 / XL 44 )
version Ultegra Di2 RED GLOSSY:
Crankset SHIMANO ULTEGRA R 8000
Chainrings SHIMANO ULTEGRA R 8000 52 x 36
Chain SHIMANO ULTEGRA HG 601
Bottom bracket BB PF 86.5 / Token ninja TF 841
Cassette SHIMANO ULTEGRA R 8000 11x28
Shifters SHIMANO ULTEGRA DI2
Derailleurs SHIMANO ULTEGRA DI2 R 8050
Wheels Mavic Aksium Elite UST DISC (Tubeless)
Tires Hutchinson Fusion 5 Performance 28
Rotors SHIMANO CENTERLOCK RT 800 F : 160 mm R : 140 mm
Weight 7,90 kgs * (size M / without pedals) * estimate
Version Ultegra 8000 PROTEAM WHITE GLOSSY:
Crankset SHIMANO ULTEGRA R 8000 ( XS-S 170 / M-L 172,5 / XL 175 )
Chainrings SHIMANO ULTEGRA R 8000 52 x 36
Chain SHIMANO ULTEGRA HG 601
Bottom bracket BB PF 86.5 / Token ninja TF 841
Cassette SHIMANO ULTEGRA R 8000 11x32
Shifters SHIMANO ULTEGRA
Derailleurs SHIMANO ULTEGRA R 8000
Rotors SHIMANO CENTERLOCK RT 800 F : 160 mm R : 140 mm
Wheels Mavic Aksium Elite UST
Tires Hutchinson Fusion 5 Performance 28
Weight 8,12 kgs * (size M / without pedals) * estimate
Version Shimano 105:
Crankset SHIMANO 105 R 7000 ( XS-S 170 / M-L 172,5 / XL 175 )
Chainrings SHIMANO 105 R 7000 52 x 36
Chain SHIMANO 105 HG 601
Bottom bracket BB PF 86.5 / Token ninja TF 841
Cassette SHIMANO 105 R 7000 11X32
Shifters SHIMANO 105
Derailleurs SHIMANO 105 R 7000
Rotors SHIMANO CENTERLOCK RT 70 F : 160 mm R : 140 mm
Wheels SHIMANO RS 171
Tires Vittoria Zaffiro Slick II 25
Weight 8,52 kgs * (size M / without pedals) *estimate
