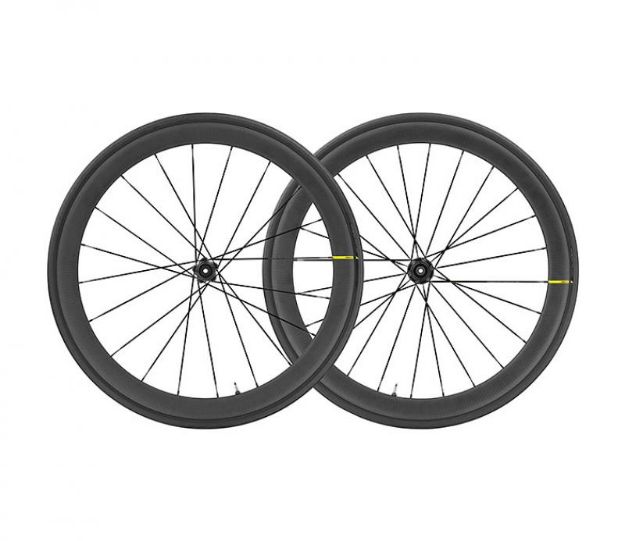

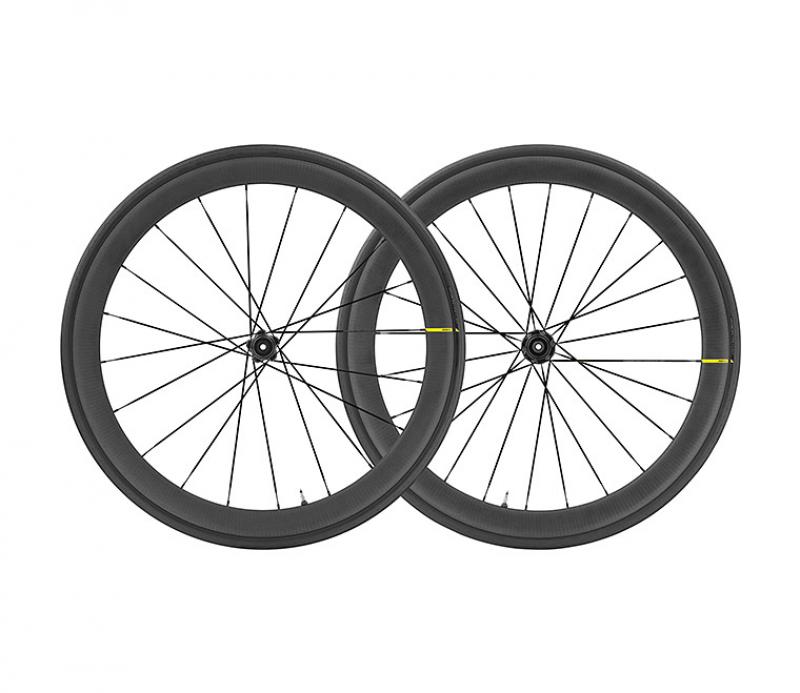

Cosmic Pro Carbon SL UST Disc
The super fast Cosmic Pro Carbon SL Disc now goes even faster thanks to the added benefits of Road UST Tubeless.
Weight : 1570 grams (Pair without tyre)
Key benefits
An ultra-dynamic ride, thanks to low inertia, improved rolling efficiency and high lateral stiffness
The lowest inertia in the category
Road UST tubeless increases rolling efficiency and traction
24 spokes front and rear, so you get increased lateral stiffness and optimal power transfer
Aero-designed for high speed in all conditions
40mm rim profile adopting a NACA profile for lower drag
25mm external width (19mm internal) for perfect tyre integration and superior handling in all conditions
Patented elliptical spokes enhance aerodynamics
Smartly adapted to the constraints of disc brakes
24 spokes front and rear for perfect brake torque distribution
Front hub convertible from 12mm through axle to quick release or 15mm through axle (with optional adapters)
Rear hub convertible from 12x142 through axle to quick release (with optional adapters - not available in Germany)
6 Bolts or Center Lock
Also XD Road compatible, with an optional driver body
Specifications
Compatibility
Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters (not available in Germany)
Freewheel: Shimano/Sram or Campagnolo, convertible to XD-R with optional driver body
Front axle : 12mm thru axle. Optional : Easily convertible to quick release with adequate adapters, convertible to 15mm with complete axle replacement
Weight
Tyre 700x25: 260 grams
Pair without tyre: 1570 grams
Front without tyre: 750 grams
Rear without tyre: 820 grams
Hubs
Front : adjustable sealed cartridge bearings (QRM+), Rear : auto adjust sealed cartridge bearings (QRM Auto)
Freewheel: Instant Drive 360
Front and rear bodies: aluminum
Axle material: aluminum
Intended Use
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 1 : road only
Max. Pressure tubeless: 25mm 6 bars - 87 PSI, 28mm 5 bars - 70 PSI. Max pressure tubetype: 25/28mm 7,7 bars - 110 PSI
Recommended tyre sizes: 25 to 32 mm
Rims
ETRTO size: 622x19TC Road
Material: 3K carbon fibers
Drilling: traditional
Internal width: 19 mm
Height: 40 mm
Disc brake specific profile
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Spokes
Shape: straight pull, aero, double butted
Nipples: aluminum, ABS
Material: steel
Lacing: front crossed 2, rear Isopulse
Count: 24 front and rear
Tyre
Front and Rear Tread: 11 Storm single compound
Yksion Pro UST
UST Tubeless Ready
Dimension: 25-622 (700x25c)
Breaker: Polyamide, from bead to bead
Casing: 127 TPI
Versions
Disc standard : 6 Bolts or Center Lock(R)
Color: Black only
Delivered with
Front 12 mm adapters
Rear 12x142mm adapters for Instant Drive 360
Mavic tyre sealant (rear wheel)
Tubeless rim tape
Multifonction adjustment wrench
Specific disc bolts
UST valve and accessories
User guide
