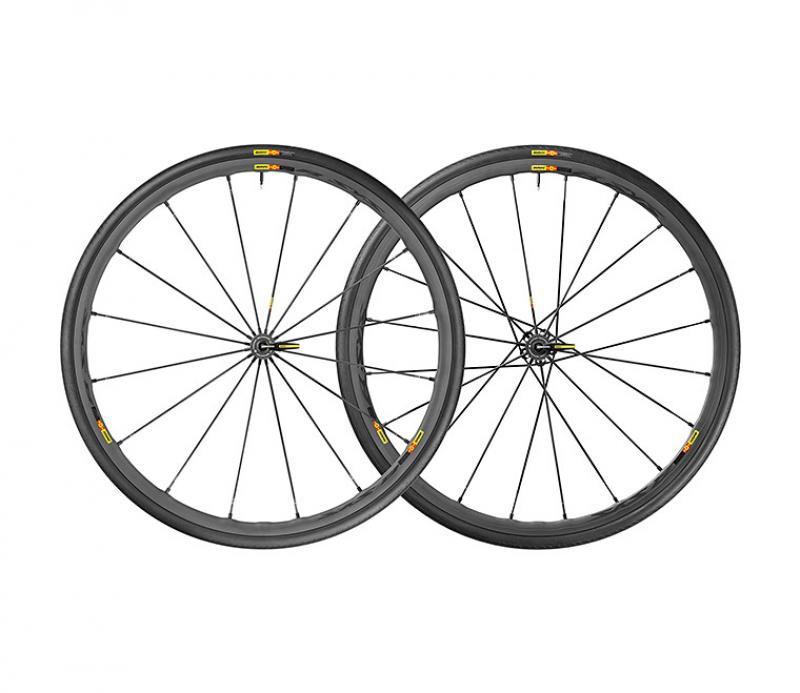

R-SYS SLR
THE LIGHTEST CLINCHER WHEELSET AVAILABLE NOW WITH A WIDER, DEEPER RIM. NOW AVAILABLE IN LIMITED EDITION
Weight : 1295 grams (Pair without tyre).
Key benefits
The lightest alloy clincher wheel
New ISM 4D, Exalith 2 rims
Carbon Tracomp spokes
Superlight bearings and axles: QRM SL
High efficiency and energy transfer
Tracomp Superlight spokes
Yksion Pro PowerLink tyre
Taller rim profile for unbeatable lateral stiffness
Accurate cornering
Tracomp Superlight spokes
Grippy Yksion Pro GripLink tyre
Rounder rim profile offers optimized stiffness with easier handling
Specifications
Compatibility
Rear axle: Quick Release only
Front axle: Quick Release only
Freewheel: Shimano/Sram, convertible to Campagnolo with optional driver body
Weight
Tyre 700x23: 195 grams
Pair without tyre: 1295 grams
Front without tyre: 555 grams
Rear without tyre: 740 grams
Hubs
Super Light sealed cartridge bearings (QRM SL)
Front and rear bodies: aluminum
Axle material: aluminum
Freewheel: FTS-L steel
Intended Use
Max. Pressure: 23mm 8.7 bars - 125 psi, 25/28mm 7.7 bars - 110 psi
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 1 : road only
Recommended tyre sizes: 21 to 30 mm
Rims
Internal width: 15mm
Height: front 24mm, rear 26 asymmetrical
Weight reduction: ISM 4D
Brake track: Exalith 2
ETRTO size: 622x15C
Valve hole diameter: 6.5 mm
Tyre: clincher
Drilling: Fore
Joint: SUP
Material: Maxtal
Spokes
Shape: Tracomp tubular (front and rear non drive side) and straight pull bladed and double butted (rear drive side)
Material: carbon fiber (front and rear non drive side) and Zicral (rear drive side)
Nipples: Fore integrated aluminum
Lacing: radial front and rear non-drive side, crossed 2 rear drive side
Count: front 16, rear 20
Tyre
Dimensions: 23-622 (700x23c) or 25-622 (700x25C)
Breaker: Front Kevlar, Rear polyamide
Yksion Pro GripLink (front) & PowerLink (rear)
Front and Rear Tread: Single Compound
Casing: 127 TPI
Versions
Color: Black only
Delivered with
Multifonction adjustment wrench
Exalith brake pads
Tracomp ring tool
User guide
Computer magnet
BR601 quick releases
