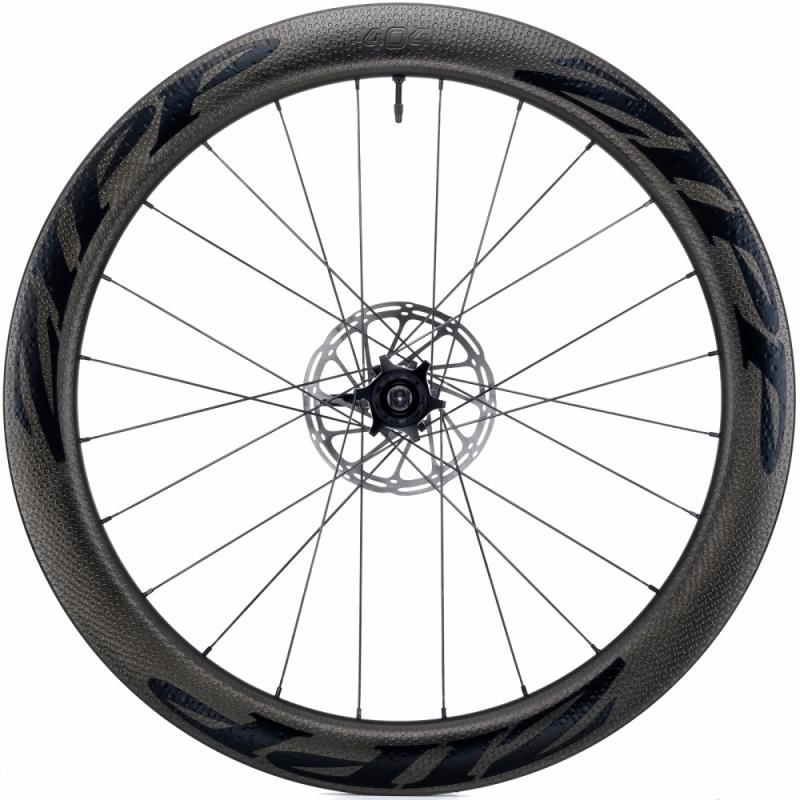

Road bikes are ever evolving and ever inspiring. The 404 Firecrest® Carbon Clincher Tubeless Disc brake offers cyclists the chance to experience best-in-class aero efficiency and stability with the benefits of tubeless compatibility along with a purpose-built rim shape for disc brakes and wider tire options.
Zipp’s 404 Firecrest Tubeless Disc-brake is all about road riding and racing. In use at the highest levels of professional cycling and triathlon, disc-brakes are poised for growth in all sorts of road riding. As for speed, the 404 Firecrest is where the Firecrest® Revolution began. If you had to choose just one wheel, the 404 Firecrest should be your choice.
Without the constraints of rim brake caliper compatibility or brake-track requirements, the new Firecrest Carbon Clincher Tubeless Disc-brake wheels offer the increased stopping power and modulation of disc brakes and a whole lot more.
To maximize the aero performance of the wheels, Zipp’s ABLC™ dimples extend all the way to the outer edge of the disc-specific rims. The new wheels are also optimized for wider tires to meet the performance needs of modern riders in search of low rolling resistance and aero efficiency with high comfort. In developing these wheelsets, Zipp engineers examined three different external rim shape concepts, and within each of those shapes, four separate internal widths before selecting the most efficient design. The 404 Firecrest Tubeless Disc brake has an internal width of 19mm and are aerodynamically optimized for 25mm wide tires. The refined rim shape improves Firecrest’s ability to yield low aerodynamic drag and high crosswind stability, a combination we call AeroBalance™.
Designed to be tubeless compatible, the wheels feature a rim bed made with internal ridges to lock the tire’s bead in place, ensuring secure performance even when ridden at lower tire pressures. Zipp’s low rolling resistance and high grip Tangente RT28 and RT25 Road Tubeless tires pair well with the new Firecrest disc brake wheels.
A new carbon fiber layup for the Indianapolis-made rims keeps weight low while maintaining the Firecrest Carbon Clincher’s proven durability. The robust 77D/177D hubset, paired with 24 Sapim® CX-Sprint spokes front and rear, keeps the wheels stiff and responsive. To ensure compatibility with any bike, our versatile 77D/177D hubs come with swappable end caps to work with QR’s and thru-axles, including 12x100mm and 15x100mm front thru-axles as well as 12x142mm rear thru-axles. The 177D rear hub is also XDR driver body compatible for use with SRAM 10-42 cassettes.
Each Wheel Includes:
Zipp Tangente Quick Release Skewer
Zipp Tubeless valve – factory installed
Tubeless rim tape – factory installed
Valve core removal tool
Zipp 77D/177D thru-axle caps to fit 12x100, 15x100 dropouts for front wheels, and 12x142 dropouts for rear wheels
Freehub body spacer – 11 to 10 speed
SRAM® XDR driver body for 177D available separately
SPECS:
Set Weight 1715g
Max recommended rider weight (lbs) 250lbs
Front Wheel
Weight 800g
Hub Used 77D
Hub Width 100mm
Rim Depth 58mm
Max Width 26.4mm
Internal Width 19mm
Spokes Sapim® CX-Ray®
Spoke Count 24
Spoke Pattern 2 cross
Spoke Length Drive 260mm / straight pullmm
Spoke Length Non-Drive 258mm / straight pullmm
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
Track Adaptable No
Dimpled Surface Yes
Nipples Sapim® Secure Lock
External Nipples Yes
Thru Axle Compatible Yes
Tubeless Yes
Rear Wheel
Weight 915g
Hub Used 177D
Hub Width 135 / 142mm
Rim Depth 58mm
Max Width 26.4mm
Internal Width 19mm
Spokes Sapim® CX-Ray®
Spoke Count 24
Spoke Pattern Non-Drive 2 cross
Spoke Pattern Drive 2 cross
Spoke Length Drive 258mm / straight pullmm
Spoke Length Non-Drive 260mm / straight pull
Max Tire Pressure 125psi
Max Tire Pressure 8.62bars
10 or 11-speed Compatible Hub Yes
XDR Compatible Yes
Track Adaptable No
Dimpled Surface Yes
Nipples Sapim® Secure Lock
External Nipples Yes
Thru Axle Compatible Yes
Tubeless Yes
