Delivery time – 4-8 weeks
How do you perfect the integration of a frame with our wheels - for the fastest chassis system of all time?

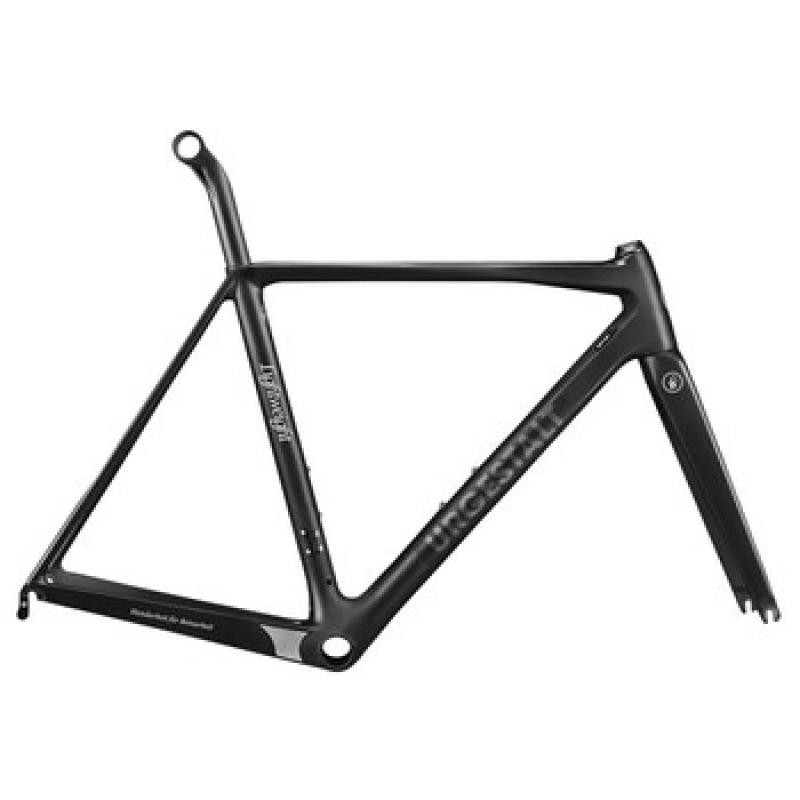

It's easy: with URGESTALT, the first frame from Lightweight. Our aim was to create a perfectly matched chassis. With a frame design optimised for a consummate flow of power and a unique cycling experience. What we wanted was a symbiosis of frame and wheels that had never been achieved before – neither from the technological nor from the aesthetic standpoint. In short: a frame with more passion for more passion. With outstanding rigidity values, so that your energy can flow without loss through our new chassis system – and be transferred directly to the road. You can feel and experience this uninterrupted flow of force. With optimum agility, precision, safety and of course, an incomparably pleasurable ride.
Frame weight 790 grams
URGESTALT set weight 1,340 grams including headset and seat post with integrated clamp
Bottom bracket, Pressfit 86,5 x 41 mm
Head tube, 1,5" x 1 1/8" tapered
Compatible with 25 mm tires
Sporty comfortable long distance driving geometry
Combines the advantages of the Lightweight wheels in terms of precision, agility, design, safety and exclusivity
Power transmission carbon fibre structure
100 % quality control process
URGESTALT 48
Horizontal upper tube length
515 mmA
Measured size
460 mmB
Seat tube angle
74,5°C
Head tube angle
71,5°D
Chain stay length
405 mmE
Fork pre-bend
45 mmF
Bottom bracket lowering
72 mmG
Wheelbase
962,3 mmH
Head tube length
110 mmI
URGESTALT 51
Horizontal upper tube length
530 mmA
Measured size
490 mmB
Seat tube angle
74°C
Head tube angle
72°D
Chain stay length
405 mmE
Fork pre-bend
45 mmF
Bottom bracket lowering
72 mmG
Wheelbase
970,6 mmH
Head tube length
120 mmI
URGESTALT 54
Horizontal upper tube length
545 mmA
Measured size
520 mmB
Seat tube angle
73,5°C
Head tube angle
73°D
Chain stay length
405 mmE
Fork pre-bend
45 mmF
Bottom bracket lowering
69 mmG
Wheelbase
974,8 mmH
Head tube length
140 mmI
URGESTALT 56
Horizontal upper tube length
560 mmA
Measured size
540 mmB
Seat tube angle
73,5°C
Head tube angle
73°D
Chain stay length
405 mmE
Fork pre-bend
45 mmF
Bottom bracket lowering
69 mmG
Wheelbase
989,9 mmH
Head tube length
155 mmI
URGESTALT 58
Horizontal upper tube length
575 mmA
Measured size
560 mmB
Seat tube angle
73°C
Head tube angle
73,5°D
Chain stay length
405 mmE
Fork pre-bend
45 mmF
Bottom bracket lowering
67 mmG
Wheelbase
996,4 mmH
Head tube length
175 mmI
URGESTALT 60
Horizontal upper tube length
590 mmA
Measured size
580 mmB
Seat tube angle
72,5°C
Head tube angle
73,5°D
Chain stay length
408 mmE
Fork pre-bend
45 mmF
Bottom bracket lowering
67 mmG
Wheelbase
1009 mmH
Head tube length
195 mmI
*The sale of this product is excluded for customers in the United States, with the exception that it is an integral part in selling a complete bicycle.
